型号 Item No. |
螺牙规格 Thread |
适应电 缆外径 CableRange Φ |

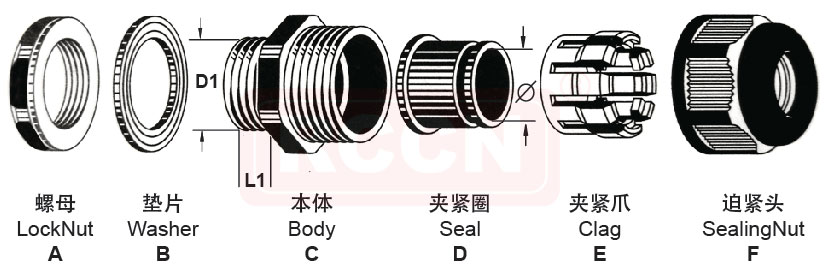

螺纹外径 Thread O.D. D1 |
机板口径 Panel Mounting Hole |
螺纹长度 Thread Length L1 |
接合长度 Joint Length L2+L3 |
板手 Spanner size A&F | |
|
黑色 Black |
灰白色 White | |||||||
| MG12A-05B | MG12A-05G | M12*1.5 | 3-5.3 | 12 | 12-12.3 | 8.5 | 38 | 18/19 |
| *MG12A-08B | MG12A-08G | M12*1.5 | 4-8 | 12 | 12-12.3 | 8.5 | 30 | 18/19 |
| MG16A-07B | MG16A-07G | M16*1.5 | 4-7 | 16 | 16-16.3 | 15 | 35 | 22/22 |
| *MG16A-10B | MG16A-10G | M16*1.5 | 6-10 | 16 | 16-16.3 | 15 | 35 | 22/22 |
| MG20A-06B | MG20A-06G | M20*1.5 | 4-6 | 20 | 20-20.3 | 15 | 37 | 27/27 |
| MG20A-11B | MG20A-11G | M20*1.5 | 6-11 | 20 | 20-20.3 | 15 | 37 | 27/27 |
| *MG20A-14B | MG20A-14G | M20*1.5 | 9-14 | 20 | 20-20.3 | 15 | 42 | 27/27 |
| MG25A-16B | MG25A-16G | M25*1.5 | 10-16 | 25 | 25-25.3 | 15 | 42 | 33/33 |
| *MG25A-18B | MG25A-18G | M25*1.5 | 13-18 | 25 | 25-25.3 | 15 | 48 | 33/33 |
| MG32A-22B | MG32A-22G | M32*1.5 | 15-22 | 32 | 32-32.3 | 15 | 48 | 41/42 |
| *MG32A-25B | MG32A-25G | M32*1.5 | 18-25 | 32 | 32-32.3 | 15 | 51 | 41/42 |
| MG40A-25B | MG40A-25G | M40*1.5 | 20-26 | 40 | 40-40.3 | 20 | 51 | 50/52 |
| *MG40A-30B | MG40A-30G | M40*1.5 | 24-31 | 40 | 40-40.3 | 20 | 59 | 50/52 |
| MG50A-32B | MG50A-32G | M50*1.5 | 25-33 | 50 | 50-50.3 | 22 | 59 | 62/62 |
| *MG50A-40B | MG50A-40G | M50*1.5 | 30-41 | 50 | 50-50.3 | 22 | 65 | 62/62 |
| MG63A-46B | MG63A-46G | M63*1.5 | 39-46 | 63 | 63-63.3 | 25 | 65 | 75/75 |
| *MG63A-50B | MG63A-50G | M63*1.5 | 40-51 | 63 | 63-63.3 | 25 | 65 | 75/75 |
| MG75A-56B | MG75A-56G | M75*2.0 | 50-56 | 75 | 75-75.3 | 25 | 65 | 92/92 |
| MG75A-66B | MG75A-66G | M75*2.0 | 55-66 | 75 | 75-75.3 | 25 | 65 | 92/92 |
| MG90A-68B | MG90A-68G | M90*2.0 | 58-68 | 90 | 90-90.3 | 25 | 65 | 110/110 |
| MG90A-77B | MG90A-77G | M90*2.0 | 65-77 | 90 | 90-90.3 | 25 | 65 | 110/110 |
| MG16AS-05BST | MG16AS-05GST | M16*1.5 | 3-5.5 | 16 | 16-16.3 | 10 | 30 | 22/19 |
| MG16AS-08BST | MG16AS-08GST | M16*1.5 | 4-8 | 16 | 16-16.3 | 10 | 30 | 22/19 |
| MG16AS-05B | MG16AS-05G | M16*1.5 | 3-5.5 | 16 | 16-16.3 | 10 | 35 | 22/19 |
| MG16AS-08B | MG16AS-08G | M16*1.5 | 4-8 | 16 | 16-16.3 | 10 | 35 | 22/19 |
| MG16A-07BST | MG16A-07GST | M16*1.5 | 4-7 | 16 | 16-16.3 | 10 | 35 | 22/22 |
| MG16A-10BST | MG16A-10GST | M16*1.5 | 6-10 | 16 | 16-16.3 | 10 | 35 | 22/22 |
| MG20AS-09BST | MG20AS-09GST | M20*1.5 | 5-9 | 20 | 20-20.3 | 10 | 37 | 24/24 |
| MG20AS-12BST | MG20AS-12GST | M20*1.5 | 6-12.5 | 20 | 20-20.3 | 10 | 37 | 24/24 |
| MG20A-11BST | MG20A-11GST | M20*1.5 | 6-11 | 20 | 20-20.3 | 10 | 37 | 27/27 |
| MG20A-14BST | MG20A-14GST | M20*1.5 | 9-14 | 20 | 20-20.3 | 10 | 37 | 27/27 |
| MG25AS-11BST | MG25AS-11GST | M25*1.5 | 6-11 | 25 | 25-25.3 | 10 | 42 | 33/27 |
| MG25AS-14BST | MG25AS-14GST | M25*1.5 | 9-14 | 25 | 25-25.3 | 10 | 42 | 33/27 |
| MG25AS-16BST | MG25AS-16GST | M25*1.5 | 10-16 | 25 | 25-25.3 | 10 | 42 | 33/33 |
| MG25AS-18BST | MG25AS-18GST | M25*1.5 | 13-18 | 25 | 25-25.3 | 10 | 42 | 33/33 |
