铜管端子 HUP
发布时间：2019-03-14 浏览次数：89次 作者：023web
铜管端子 HUP
冷压端头,铜管端子,线鼻子
产品材质:接线端子采用优质紫铜制成,导电性良好
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套华展端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管

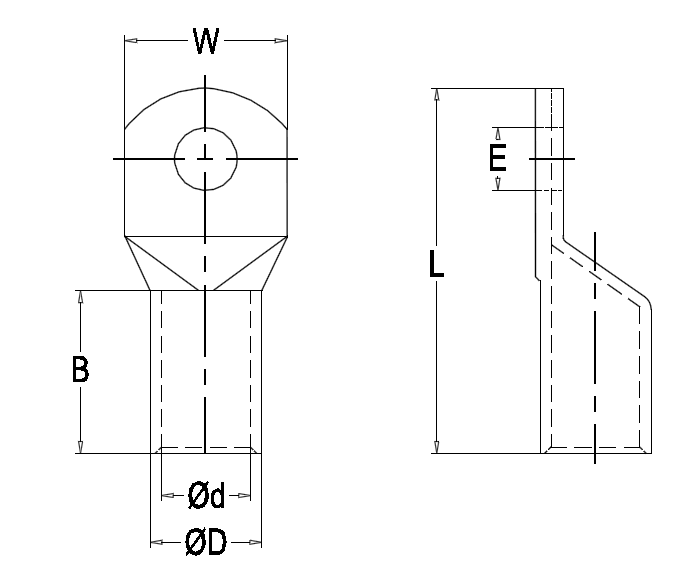

型 号
Item No. | E | φD | φd | W | B | L |
| HUP1.5-3 | 3.2 | 3.3 | 1.8 | 6.5 | 6 | 15.3 |
| HUP1.5-4 | 4.3 | 3.3 | 1.8 | 6.5 | 6 | 17 |
| HUP1.5-6 | 6.5 | 3.3 | 1.8 | 9 | 6 | 22.5 |
| HUP2.5-3 | 3.2 | 4.2 | 2.3 | 7.5 | 6 | 15.3 |
| HUP2.5-4 | 4.3 | 4.2 | 2.3 | 7.5 | 6 | 17 |
| HUP2.5-5 | 5.3 | 4.2 | 2.3 | 8.5 | 6 | 18.8 |
| HUP2.5-6 | 6.5 | 4.2 | 2.3 | 9.5 | 6 | 22.5 |
| HUP2.5-8 | 8.5 | 4.2 | 2.3 | 13 | 6 | 27.8 |
| HUP4-5 | 5.3 | 5 | 3 | 9 | 8 | 21.8 |
| HUP4-6 | 6.5 | 5 | 3 | 10 | 8 | 25.5 |
| HUP4-8 | 8.5 | 5 | 3 | 13 | 8 | 30.5 |
| HUP6-5 | 5.3 | 6.5 | 3.5 | 10 | 9 | 27.5 |
| HUP6-6 | 6.5 | 6.5 | 3.5 | 12 | 9 | 27.5 |
| HUP6-8 | 8.5 | 6.5 | 3.5 | 15 | 9 | 33 |
| HUP6-10 | 10.5 | 6.5 | 3.5 | 17 | 9 | 37 |
| HUP6-12 | 13 | 6.5 | 3.5 | 19 | 9 | 41 |
| HUP10-5 | 5.3 | 7 | 4.5 | 12 | 10 | 28.5 |
| HUP10-6 | 6.5 | 7 | 4.5 | 12 | 10 | 28.5 |
| HUP10-8 | 8.5 | 7 | 4.5 | 15 | 10 | 35 |
| HUP10-10 | 10.5 | 7 | 4.5 | 17 | 10 | 39 |
| HUP10-12 | 13 | 7 | 4.5 | 19 | 10 | 42 |
| HUP16-5 | 5.3 | 8.5 | 5.5 | 12 | 13 | 32.5 |
| HUP16-6 | 6.5 | 8.5 | 5.5 | 12 | 13 | 33.3 |
| HUP16-8 | 8.5 | 8.5 | 5.5 | 15 | 13 | 37.5 |
| HUP16-10 | 10.5 | 8.5 | 5.5 | 17 | 13 | 41.5 |
| HUP16-12 | 13 | 8.5 | 5.5 | 19 | 13 | 45 |
| HUP16-14 | 15 | 8.5 | 5.5 | 21 | 13 | 45 |
| HUP25-5 | 5.3 | 10 | 7 | 14 | 15 | 37.5 |
| HUP25-6 | 6.5 | 10 | 7 | 14 | 15 | 37.5 |
| HUP25-8 | 8.5 | 10 | 7 | 16 | 15 | 42 |
| HUP25-10 | 10.5 | 10 | 7 | 18 | 15 | 46 |
| HUP25-12 | 13 | 10 | 7 | 19 | 15 | 48 |
| HUP25-14 | 15 | 10 | 7 | 21 | 15 | 52.5 |
| HUP35-6 | 6.5 | 12 | 8.5 | 17 | 17 | 39.5 |
| HUP35-8 | 8.5 | 12 | 8.5 | 17 | 17 | 44 |
| HUP35-10 | 10.5 | 12 | 8.5 | 19 | 17 | 49 |
| HUP35-12 | 13 | 12 | 8.5 | 21 | 17 | 51 |
| HUP35-14 | 15 | 12 | 8.5 | 21 | 17 | 54.5 |
| HUP35-16 | 17 | 12 | 8.5 | 26 | 17 | 58 |
| HUP50-6 | 6.5 | 14 | 10 | 20 | 19 | 47 |
| HUP50-8 | 8.5 | 14 | 10 | 20 | 19 | 47 |
| HUP50-10 | 10.5 | 14 | 10 | 20 | 19 | 51 |
| HUP50-12 | 13 | 14 | 10 | 23 | 19 | 56 |
| HUP50-14 | 15 | 14 | 10 | 23 | 19 | 59.5 |
| HUP50-16 | 17 | 14 | 10 | 28 | 19 | 62 |
| HUP50-20 | 21 | 14 | 10 | 30 | 19 | 67 |
| HUP70-6 | 6.5 | 16.5 | 12 | 23.5 | 21 | 53 |
| HUP70-8 | 8.5 | 16.5 | 12 | 23.5 | 21 | 53 |
| HUP70-10 | 10.5 | 16.5 | 12 | 23.5 | 21 | 56 |
| HUP70-12 | 13 | 16.5 | 12 | 23.5 | 21 | 59 |
| HUP70-14 | 15 | 16.5 | 12 | 23.5 | 21 | 62.5 |
| HUP70-16 | 17 | 16.5 | 12 | 28 | 21 | 66 |
| HUP70-20 | 21 | 16.5 | 12 | 30 | 21 | 72 |
| HUP95-8 | 8.5 | 18 | 13.5 | 26 | 25 | 60 |
| HUP95-10 | 10.5 | 18 | 13.5 | 26 | 25 | 60 |
| HUP95-12 | 13 | 18 | 13.5 | 26 | 25 | 62 |
| HUP95-14 | 15 | 18 | 13.5 | 26 | 25 | 65.5 |
| HUP95-16 | 17 | 18 | 13.5 | 28 | 25 | 70 |
| HUP95-20 | 21 | 18 | 13.5 | 36 | 26 | 82 |
| HUP120-8 | 8.5 | 19.5 | 15 | 28 | 26 | 65 |
| HUP120-10 | 10.5 | 19.5 | 15 | 28 | 26 | 65 |
| HUP120-12 | 13 | 19.5 | 15 | 28 | 26 | 65 |
| HUP120-14 | 15 | 19.5 | 15 | 28 | 26 | 67 |
| HUP120-16 | 17 | 19.5 | 15 | 30 | 26 | 70 |
| HUP120-20 | 21 | 19.5 | 15 | 36 | 28 | 85 |
| HUP150-8 | 8.5 | 21 | 16.5 | 30.5 | 30 | 70 |
| HUP150-10 | 10.5 | 21 | 16.5 | 30.5 | 30 | 72 |
| HUP150-12 | 13 | 21 | 16.5 | 30.5 | 30 | 72 |
| HUP150-14 | 15 | 21 | 16.5 | 30.5 | 30 | 72 |
| HUP150-16 | 17 | 21 | 16.5 | 30.5 | 30 | 74 |
| HUP150-20 | 21 | 21 | 16.5 | 36 | 30 | 88 |
| HUP185-10 | 10.5 | 24 | 19 | 35 | 30 | 83 |
| HUP185-12 | 13 | 24 | 19 | 35 | 30 | 83 |
| HUP185-14 | 15 | 24 | 19 | 35 | 30 | 83 |
| HUP185-16 | 17 | 24 | 19 | 35 | 30 | 83 |
| HUP185-20 | 21 | 24 | 19 | 39 | 30 | 91 |
| HUP240-10 | 10.5 | 26 | 21 | 38 | 35 | 93.5 |
| HUP240-12 | 13 | 26 | 21 | 38 | 35 | 93.5 |
| HUP240-14 | 15 | 26 | 21 | 38 | 35 | 93.5 |
| HUP240-16 | 17 | 26 | 21 | 38 | 35 | 93.5 |
| HUP240-20 | 21 | 26 | 21 | 38 | 35 | 93.5 |
| HUP300-12 | 13 | 29.5 | 23.5 | 43 | 44 | 111 |
| HUP300-14 | 15 | 29.5 | 23.5 | 43 | 44 | 111 |
| HUP300-16 | 17 | 29.5 | 23.5 | 43 | 44 | 111 |
| HUP300-20 | 21 | 29.5 | 23.5 | 43 | 44 | 111 |
| HUP400-12 | 13 | 34 | 27 | 49.5 | 44 | 114 |
| HUP400-14 | 15 | 34 | 27 | 49.5 | 44 | 114 |
| HUP400-16 | 17 | 34 | 27 | 49.5 | 44 | 114 |
| HUP400-20 | 21 | 34 | 27 | 49.5 | 44 | 114 |
| HUP500-16 | 17 | 42 | 31 | 59 | 70 | 150 |
| HUP500-20 | 21 | 42 | 31 | 59 | 70 | 150 |
| HUP630-16 | 17 | 44 | 34.5 | 63.5 | 80 | 170 |
| HUP630-20 | 21 | 44 | 34.5 | 63.5 | 80 | 170 |
