铜管端子 DT
发布时间：2019-03-14 浏览次数：78次 作者：023web
铜管端子 DT
冷压端子,线鼻子,端子
产品材质:接线端子采用优质紫铜制成,导电性良好
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套华展端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管

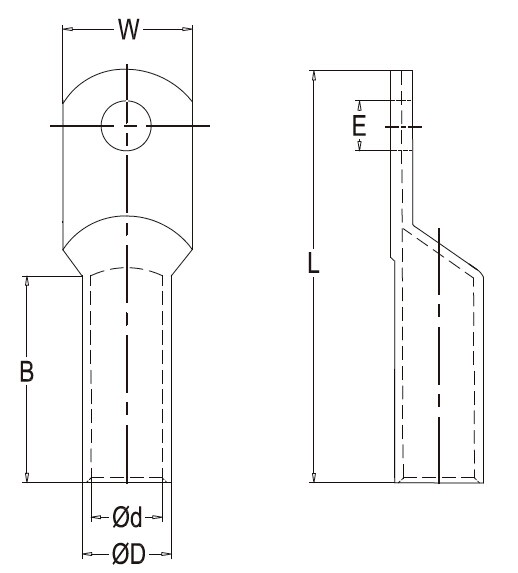

型 号
Item No. | E | φD | φd | W | B | L |
| DT1.5-5 | 5.2 | 4 | 2.2 | 8 | 10 | 23 |
| DT2.5-4 | 4.2 | 4.5 | 2.9 | 8 | 13 | 27 |
| DT2.5-5 | 5.2 | 4.5 | 2.9 | 8 | 13 | 27 |
| DT2.5-6 | 6.4 | 4.5 | 2.9 | 10 | 13 | 27 |
| DT4-5 | 5.2 | 5.2 | 3.6 | 10 | 13 | 28 |
| DT4-6 | 6.4 | 5.2 | 3.6 | 10 | 13 | 28 |
| DT6-5 | 5.2 | 6 | 4.2 | 10 | 17 | 35 |
| DT6-6 | 6.4 | 6 | 4.2 | 10 | 17 | 35 |
| DT6-8 | 8.4 | 6 | 4.2 | 12 | 17 | 35 |
| DT10-6 | 6.4 | 7 | 5 | 12.4 | 17 | 36 |
| DT10-8 | 8.4 | 7 | 5 | 12.4 | 17 | 36 |
| DT16-6 | 6.4 | 9 | 6 | 14 | 32 | 58 |
| DT16-8 | 8.4 | 9 | 6 | 14 | 32 | 58 |
| DT25-6 | 6.4 | 10 | 7 | 15 | 32 | 58 |
| DT25-8 | 8.4 | 10 | 7 | 15 | 32 | 58 |
| DT25-10 | 10.5 | 10 | 7 | 17.5 | 32 | 58 |
| DT35-6 | 6.4 | 12 | 9 | 17.1 | 36 | 62 |
| DT35-8 | 8.4 | 12 | 9 | 17.1 | 36 | 62 |
| DT35-10 | 10.5 | 12 | 9 | 18 | 36 | 62 |
| DT50-8 | 8.4 | 14 | 10 | 20 | 40 | 72 |
| DT50-10 | 10.5 | 14 | 10 | 20 | 40 | 72 |
| DT70-8 | 8.4 | 16 | 12 | 23 | 42 | 76 |
| DT70-10 | 10.5 | 16 | 12 | 23 | 42 | 76 |
| DT70-12 | 13 | 16 | 12 | 23 | 42 | 76 |
| DT95-10 | 10.5 | 18 | 14 | 26 | 44 | 84 |
| DT95-12 | 13 | 18 | 14 | 26 | 44 | 84 |
| DT120-12 | 13 | 21 | 16 | 30 | 46 | 90 |
| DT120-16 | 17 | 21 | 16 | 30 | 46 | 90 |
| DT150-12 | 13 | 23 | 17 | 33 | 50 | 98 |
| DT150-16 | 17 | 23 | 17 | 33 | 50 | 98 |
| DT185-12 | 13 | 25 | 19 | 36 | 52 | 101 |
| DT185-16 | 17 | 25 | 19 | 36 | 52 | 101 |
| DT240-12 | 13 | 28 | 21.6 | 40 | 52 | 110 |
| DT240-16 | 17 | 28 | 21.6 | 40 | 52 | 112 |
| DT240-20 | 21 | 28 | 21.6 | 40 | 52 | 112 |
| DT300-16 | 17 | 31 | 24 | 45 | 58 | 116 |
| DT300-20 | 21 | 31 | 24 | 45 | 58 | 120 |
| DT400-16 | 17 | 36.5 | 28.5 | 52 | 66 | 126 |
| DT400-20 | 21 | 36.5 | 28.5 | 52 | 66 | 131 |
| DT500-16 | 17 | 39 | 30.5 | 56 | 70 | 141 |
| DT500-20 | 21 | 39 | 30.5 | 56 | 70 | 146 |
| DT630-20 | 21 | 45 | 35.5 | 65 | 80 | 168 |
