材 质：外部金属为不锈钢304 ;密封件为改性橡胶；芯套为PA6 ,护套为镀锌铁皮/不锈钢
密封套：TPE
防护等级：IP65
温度范围：-40℃到100℃ ,短时间可以达到+120℃
材 质：外部金属为不锈钢304 ;密封件为改性橡胶；芯套为PA6 ,护套为镀锌铁皮/不锈钢
密封套：TPE
防护等级：IP65
温度范围：-40℃到100℃ ,短时间可以达到+120℃

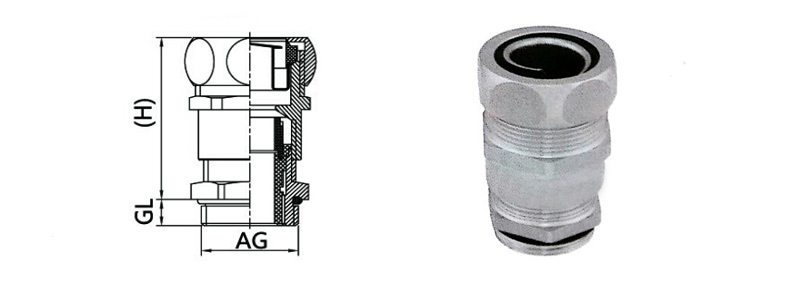

产品规格
|
型号 Item No . |
螺纹规格 Thread mm |
卡口范围 clamping mm |
螺纹长度 GL mm |
扳手尺寸 Wrench size mm |
适配软管（公称内径） Fits to tubing size (Nominal inner） mm |
包装 Std.Pkg PCS |
| NBLS-M带锁紧金属软管接头 | ||||||
| NBLS -01M | M12x1.5 | 3-5.5 | 6 | 18/17/14 | φ6 | 25 |
| NBLS -02M | M16x1.5 | 4-7 | 7 | 20/19/18 | φ8 | 25 |
| NBLS -03M | M18x1.5 | 5-9 | 7 | 24/23/20 | φ10 | 25 |
| NBLS -04M | M20x1.5 | 6-11 | 7 | 26/26/22 | φ13 | 25 |
| NBLS -05M | M20x1.5 | 6-12 | 7 | 30/28/24 | φ16 | 25 |
| NBLS -05M | M22x1.5 | 8-14 | 7 | 30/30/24 | φ16 | 25 |
| NBLS -05M | M24x1.5 | 8-14 | 7 | 30/30/27 | φ16 | 25 |
| NBLS -05M | M25x1.5 | 8-14 | 7 | 30/30/28 | φ16 | 25 |
| NBLS -06M | M25x1.5 | 13-18 | 7 | 36/34/30 | φ20 | 25 |
| NBLS -06M | M32x1.5 | 13-18 | 8 | 36/34/36 | φ20 | 10 |
| NBLS -08M | M32x1.5 | 15-22 | 8 | 45/40/36 | φ25 | 10 |
| NBLS -08M | M36x2.0 | 15-22 | 8 | 45/45/40 | φ25 | 10 |
| NBLS -10M | M40x1.5 | 22-30 | 9 | 55/52/45 | φ32 | 5 |
| NBLS -10M | M48x2.0 | 22-30 | 9 | 55/52/55 | φ32 | 5 |
| NBLS -12M | M40x1.5 | 22-32 | 9 | 60/58/50 | φ38 | 5 |
| NBLS -12M | M50x1.5 | 30-35 | 9 | 60/58/55 | φ38 | 5 |
| NBLS -12M | M56x2.0 | 30-35 | 9 | 60/58/60 | φ38 | 2 |
| NBLS -16M | M50x1.5 | 30-38 | 9 | 75/75/75 | φ51 | 2 |
| NBLS -16M | M60x1.5 | 37-44 | 10 | 75/75/70 | φ51 | 2 |
| NBLS-P 带锁紧不锈钢软管接头 | ||||||
| NBLS -02P | PG7 | 3-5.5 | 6 | 18/17/14 | φ6 | 25 |
| NBLS -03P | PG9 | 4-7 | 7 | 20/19/17 | φ8 | 25 |
| NBLS -04P | PG11 | 5-9 | 7 | 24/23/20 | φl0 | 25 |
| NBLS -05P | PG13.5 | 6-11 | 7 | 26/26/22 | φl2 | 25 |
| NBLS -05P | PG16 | 8-14 | 7 | 30/30/24 | φl5 | 25 |
| NBLS -06P | PG21 | 13-18 | 8 | 36/34/30 | φ20 | 10 |
| NBLS -08P | PG29 | 15-22 | 8 | 45/45/40 | φ25 | 10 |
| NBLS -12P | PG36 | 22-30 | 9 | 55/52/50 | φ32 | 5 |
| NBLS -15P | PG42 | 30-35 | 9 | 60/58/58 | φ38 | 5 |
| NBLS -16P | PG48 | 37-44 | 10 | 75/75/65 | φ38 | 2 |
