产品材质:金属:黄铜镀镍制成,橡胶:硅橡胶
螺牙规格:M/PG/NPT/G(PF)
产品认证:CE,EX,ROHS
工作温度:-50°C至250°C
防护等级:IP68
使用方法:将本体固定机板,旋紧迫紧头即可固定电缆
BL系列锁线范围大
推荐优质产品
产品材质:金属:黄铜镀镍制成,橡胶:硅橡胶
螺牙规格:M/PG/NPT/G(PF)
产品认证:CE,EX,ROHS
工作温度:-50°C至250°C
防护等级:IP68
使用方法:将本体固定机板,旋紧迫紧头即可固定电缆
BL系列锁线范围大
推荐优质产品

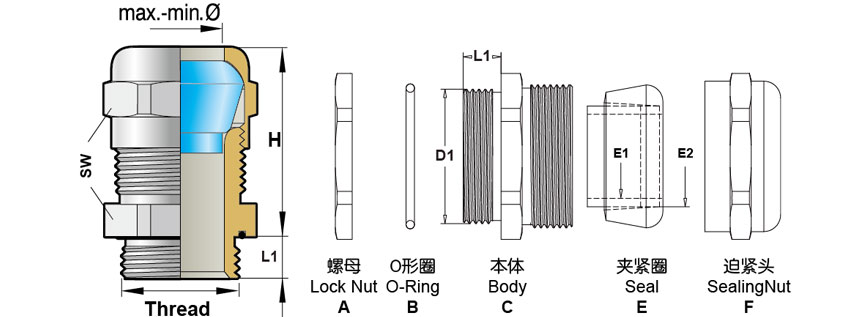

| 公制螺纹 M | 德制螺纹 PG | 美制螺纹 NPT | 英制螺纹 G |
适用电缆 Cable Range |
内层橡胶 with inlet E1 |
外层橡胶 without inlet E2 |
螺纹长度 ThreadLength L1 |
加长型号 螺纹长度 L1 |
接合长度 Joint Length L2+L3 |
板手 Spanner SW A/F |
| BL-M12×1.5-8 | BL-PG7-8 | BL-NPT1/4-8 | BL-G1/4-8 | 2-8 | 2-5 | 5-8 | 7 | 12 | 21 | 18 |
| BL-M16×1.5-11 | BL-PG9-11 | 4-11 | 4-7 | 7-11 | 7 | 12 | 25 | 20 | ||
| BL-M18×1.5-11 | BL-PG11-11 | BL-NPT3/8-11 | BL-G3/8-11 | 4-11 | 4-7 | 7-11 | 7 | 12 | 25 | 22 |
| BL-M20×1.5-14 | BL-PG13.5-14 | BL-NPT1/2-14 | BL-G1/2-14 | 5-14 | 5-9 | 9-14 | 8 | 12 | 29 | 24 |
| BL-M22×1.5-14 | BL-PG16-14 | 5-14 | 5-9 | 9-14 | 8 | 12 | 29 | 26 | ||
| BL-M24×1.5-20 | 11-20 | 11-16 | 16-20 | 9 | 13 | 30 | 30 | |||
| BL-M25×1.5-20 | BL-PG21-20 | BL-NPT3/4-20 | BL-G3/4-20 | 11-20 | 11-16 | 16-20 | 9 | 13 | 30 | 30 |
| BL-M27×1.5-20 | 11-20 | 11-16 | 16-20 | 9 | 13 | 30 | 30 | |||
| BL-M30×2.0-25 | 15-25 | 15-20 | 20-25 | 11 | 15 | 32 | 36 | |||
| BL-M32×1.5-25 | BL-NPT1-25 | BL-G1-25 | 15-25 | 15-20 | 20-25 | 11 | 15 | 32 | 36 | |
| BL-M33×2.0-25 | 15-25 | 15-20 | 20-25 | 11 | 15 | 32 | 36 | |||
| BL-M36×2.0-25 | 15-25 | 15-20 | 20-25 | 11 | 15 | 32 | 40 | |||
| BL-M40×1.5-32 | BL-PG29-32 | BL-NPT1-1/4-32 | BL-G1-1/4-32 | 20-32 | 20-26 | 26-32 | 11 | 15 | 35 | 44 |
| BL-PG36-42 | 31-42 | 31-35 | 35-42 | 11 | 15 | 39 | 58 | |||
| BL-M50×1.5-42 | BL-PG42-42 | BL-NPT1-1/2-42 | BL-G1-1/2-42 | 31-42 | 31-35 | 35-42 | 11 | 15 | 39 | 58 |
| BL-M63×1.5-54 | BL-PG48-54 | BL-NPT2-54 | BL-G2-54 | 41-54 | 41-54 | 46-54 | 14 | 18 | 40 | 68 |
| BL-M72×2.0-54 | 50-54 | 50-54 | 60-65 | 15 | 20 | 47 | 81 | |||
| BL-M75×1.5-54 | BL-NPT2-1/2-54 | BL-G2-1/2-54 | 50-54 | 50-54 | 60-65 | 15 | 20 | 47 | 81 | |
| BL-M75×1.5-65 | BL-NPT2-1/2-65 | BL-G2-1/2-65 | 54-65 | 54-58 | 58-65 | 15 | 20 | 47 | 81 | |
| BL-M75×1.5-65 | BL-NPT2-1/2-65 | BL-G2-1/2-65 | 54-65 | 54-58 | 58-65 | 15 | 20 | 47 | 81 | |
| BL-M85×2.0-77 | BL-NPT3-77 | BL-G3-77 | 65-77 | 65-70 | 70-77 | 15 | 20 | 49 | 96 | |
| BL-M90×2.0-77 | 65-77 | 65-70 | 70-77 | 15 | 20 | 49 | 96 | |||
| BL-M100×2.0-89 | BL-NPT3-1/2-89 | BL-G3-1/2-89 | 77-89 | 77-81 | 81-89 | 20 | 25 | 50 | 110 | |
| BL-M110×2.0-98 | BL-NPT4-98 | BL-G4-98 | 89-98 | 89-94 | 94-98 | 20 | 25 | 59 | 120 | |
| BL-M120×2.0-110 | 100-110 | 100-105 | 105-110 | 20 | 25 | 59 | 125 | |||
| BL-M125×2.0-110 | 100-110 | 100-105 | 105-110 | 20 | 25 | 59 | 135 | |||
| BL-M150×2.0-130 | 120-130 | 120-125 | 125-130 | 20 | 25 | 59 | 160 |
