金属快速软管防水接头 BGF
发布时间：2019-03-14 浏览次数：57次 作者：023web
金属快速软管防水接头 BGF
金属接头 ,快速接头
螺牙规格:公制螺牙(Metric).

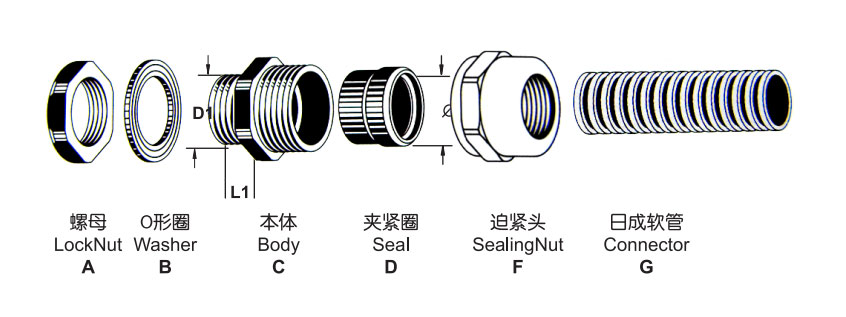

产品材质:A.C.F部位均采用黄铜镀镍制成.B.D采用硅橡胶制成。
产品认证:欧洲CE,ROHS.
防护等级:在规定的卡口范围内,并使用O形密封圈旋紧迫紧头,达到IP68。
产品特性:配套锁紧式电缆接头,防电线松动,内锁扣和本体特殊设计,装卸
只需拨插无需工具,大大缩短了安装时间. 夹紧电缆范围大,抗拉
力特强,可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂.
型号
Item No . | 螺纹规格 Thread | 最大电缆Cable
Range
Φ
| 对应日成
软管型号
Suit to RCCN
conduit item no
BG | 螺纹外径
Thread
O.D.
D1
| 机板口径
Panel
Mounting
Hole
| 螺纹长度
Thread
Length
L1
|
| 公制螺牙/Metric thread BGF-M |
| BGF-M12(BG07) | M12*1.5 | 5 | BG-07 | 12 | 12-12.3 | 6 |
| BGF-M12(BG10) | M12*1.5 | 5 | BG-10 | 12 | 12-12.3 | 6 |
| BGF-M16(BG07) | M16*1.5 | 8 | BG-07 | 16 | 16-16.3 | 7 |
| BGF-M16(BG10) | M16*1.5 | 8 | BG-10 | 16 | 16-16.3 | 7 |
| BGF-M18(BG10) | M18*1.5 | 8 | BG-10 | 18 | 18-18.3 | 8 |
| BGF-M18(BG12) | M18*1.5 | 10 | BG-12 | 18 | 18-18.3 | 8 |
| BGF-M18(BG15) | M18*1.5 | 13 | BG-15 | 18 | 18-18.3 | 8 |
| BGF-M20(BG10) | M20*1.5 | 8 | BG-10 | 20 | 20-20.3 | 8 |
| BGF-M20(BG12) | M20*1.5 | 10 | BG-12 | 20 | 20-20.3 | 8 |
| BGF-M20(BG15) | M20*1.5 | 13 | BG-15 | 20 | 20-20.3 | 8 |
| BGF-M20(BG17) | M20*1.5 | 15 | BG-17 | 20 | 20-20.3 | 8 |
| BGF-M22(BG17) | M22*1.5 | 15 | BG-17 | 22 | 22-22.3 | 9 |
| BGF-M24(BG17) | M24*1.5 | 15 | BG-17 | 24 | 24-24.3 | 10 |
| BGF-M25(BG17) | M25*1.5 | 15 | BG-17 | 25 | 25-25.4 | 10 |
| BGF-M25(BG23) | M25*1.5 | 21 | BG-23 | 25 | 25-25.4 | 10 |
| BGF-M27(BG23) | M27*1.5 | 21 | BG-23 | 27 | 27-27.4 | 11 |
| BGF-M30(BG23) | M30*1.5 | 21 | BG-23 | 30 | 30-30.4 | 11 |
| BGF-M32(BG23) | M32*1.5 | 21 | BG-23 | 32 | 32-32.4 | 11 |
| BGF-M32(BG29) | M32*1.5 | 25 | BG-29 | 32 | 32-32.4 | 11 |
| BGF-M33(BG29) | M33*1.5 | 25 | BG-29 | 33 | 33-33.4 | 11 |
| BGF-M36(BG29) | M36*1.5 | 25 | BG-29 | 36 | 36-36.4 | 11 |
| BGF-M40(BG29) | M40*1.5 | 25 | BG-29 | 40 | 40-40.4 | 12 |
| BGF-M40(BG36) | M40*1.5 | 33 | BG-36 | 40 | 40-40.4 | 12 |
| BGF-M48(BG36) | M48*2.0 | 33 | BG-36 | 48 | 48-48.4 | 12 |
| BGF-M50(BG36) | M50*1.5 | 33 | BG-36 | 50 | 50-50.4 | 13 |
| BGF-M50(BG48) | M50*1.5 | 45 | BG-48 | 50 | 50-50.4 | 13 |
| BGF-M56(BG48) | M56*2.0 | 45 | BG-48 | 56 | 56-56.4 | 13 |
| BGF-M63(BG48) | M63*1.5 | 45 | BG-48 | 63 | 63-63.4 | 14 |
型号
Item No . | 螺纹规格
Thread | 适应电缆
Cable
Range
| 对应日成
软管型号
BG
| 螺纹外径Thread
O.D.
D1 | 机板口径Panle
Mounting
Hole | 螺纹长度
Thread
Length
L1 |
| 德制螺牙BGF-P |
| BGF-PG7(BG07) | PG-7 | 3-6 | BG-07 | 12.5 | 12.5-12.8 | 6 |
| BGF-PG9(BG07) | PG-9 | 4-8 | BG-07 | 15.2 | 15.2-15.8 | 7 |
| BGF-PG9(BG10) | PG-9 | 4-8 | BG-10 | 15.2 | 15.2-15.8 | 7 |
| BGF-PG11(BG10) | PG-11 | 6-10 | BG-10 | 18.6 | 18.6-18.9 | 8 |
| BGF-PG11(BG12) | PG-11 | 6-10 | BG-12 | 18.6 | 18.6-18.9 | 8 |
| BGF-PG13.5(BG12) | PG-13.5 | 8-12 | BG-12 | 20.4 | 20.4-20.7 | 8 |
| BGF-PG13.5(BG15) | PG-13.5 | 8-12 | BG-15 | 20.4 | 20.4-20.7 | 8 |
| BGF-PG13.5(BG17) | PG-13.5 | 8-12 | BG-17 | 20.4 | 20.4-20.7 | 8 |
| BGF-PG16(BG17) | PG-16 | 10-14 | BG-17 | 22.5 | 22.5-22.8 | 9 |
| BGF-PG21(BG23) | PG-21 | 13-18 | BG-23 | 28.3 | 28.3-28.7 | 11 |
| BGF-PG29(BG29) | PG-29 | 18-25 | BG-29 | 37.0 | 37.0-37.4 | 11 |
| BGF-PG36(BG36) | PG-36 | 26-32 | BG-36 | 47.0 | 47.0-47.4 | 13 |
| BGF-PG48(BG48) | PG-48 | 37-44 | BG-48 | 59.3 | 59.3-59.7 | 14 |
| 管螺牙BGF-G |
| BGF-G1/4(BG07) | G1/4'' | 3-6 | BG-07 | 13.2 | 13.2-13.4 | 6 |
| BGF-G3/8(BG10) | G3/8'' | 4-8 | BG-10 | 16.5 | 16.5-17.1 | 7 |
| BGF-G1/2(BG12) | G1/2'' | 8-12 | BG-12 | 21.3 | 21.0-21.3 | 8 |
| BGF-G1/2(BG15) | G1/2'' | 8-12 | BG-15 | 21.3 | 21.0-21.3 | 8 |
| BGF-G1/2(BG17) | G1/2'' | 8-12 | BG-17 | 21.3 | 21.0-21.3 | 8 |
| BGF-G3/4(BG17) | G3/4'' | 13-18 | BG-17 | 26.6 | 26.5-26.6 | 11 |
| BGF-G1(BG23) | G1'' | 15-22 | BG-23 | 33.4 | 33.2-33.4 | 11 |
| BGF-G1-1/4(BG29) | G1 1/4'' | 22-28 | BG-29 | 42.1 | 41.9-42.1 | 12 |
| BGF-G1-1/2(BG36) | G1 1/2'' | 26-32 | BG-36 | 47.8 | 47.8-48.0 | 13 |
| BGF-G2(BG48) | G2'' | 37-44 | BG-48 | 59.6 | 59.6-60.1 | 14 |
| 美制螺牙BGF-N |
| BGF-NPT3/8（BG10） | NPT3/8'' | 4-8 | BG-10 | 16.5 | 16.5-17.1 | 7 |
| BGF-NPT1/2（BG12） | NPT1/2'' | 8-12 | BG-12 | 21.3 | 21.0-21.3 | 8 |
| BGF-NPT1/2（BG15） | NPT1/2'' | 8-12 | BG-15 | 21.3 | 21.0-21.3 | 8 |
| BGF-NPT1/2（BG17） | NPT1/2'' | 8-12 | BG-17 | 21.3 | 21.0-21.3 | 8 |
| BGF-NPT3/4（BG17） | NPT3/4'' | 13-18 | BG-17 | 26.6 | 26.5-26.6 | 11 |
| BGF-NPT3/4（BG23） | NPT3/4'' | 13-18 | BG-23 | 26.6 | 26.5-26.6 | 11 |
| BGF-NPT1（BG29） | NPT1'' | 15-22 | BG-29 | 33.4 | 33.2-33.4 | 11 |
下表型号为黄铜材质:
型号
Item No . | 螺纹规格Thread | 最大电缆
Cable
Range
Φ | 对应日成
软管型号
BG
| 对应日成
软管外径
BG
| 螺纹外径Thread
O.D.
D1 | 机板口径Panle
Mounting
Hole | 螺纹长度Thread
Length
L1 |
| 公制螺公制螺牙BGF-M |
| BGF1-M12(BG07) | M12*1.5 | 5 | BG-07 | 10.0 | 12 | 12-12.3 | 6 |
| BGF1-M12(BG10) | M12*1.5 | 5 | BG-10 | 13.0 | 12 | 12-12.3 | 6 |
| BGF1-M16(BG07) | M16*1.5 | 8 | BG-07 | 10.0 | 16 | 16-16.3 | 7 |
| BGF1-M16(BG10) | M16*1.5 | 8 | BG-10 | 13.0 | 16 | 16-16.3 | 7 |
| BGF1-M18(BG10) | M18*1.5 | 8 | BG-10 | 13.0 | 18 | 18-18.3 | 8 |
| BGF1-M18(BG12) | M18*1.5 | 10 | BG-12 | 15.8 | 18 | 18-18.3 | 8 |
| BGF1-M18(BG15) | M18*1.5 | 13 | BG-15 | 18.5 | 18 | 18-18.3 | 8 |
| BGF1-M20(BG10) | M20*1.5 | 8 | BG-10 | 13.0 | 20 | 20-20.3 | 8 |
| BGF1-M20(BG12) | M20*1.5 | 10 | BG-12 | 15.8 | 20 | 20-20.3 | 8 |
| BGF1-M20(BG15) | M20*1.5 | 13 | BG-15 | 18.5 | 20 | 20-20.3 | 8 |
| BGF1-M20(BG17) | M20*1.5 | 15 | BG-17 | 21.2 | 20 | 20-20.3 | 8 |
| BGF1-M22(BG17) | M22*1.5 | 15 | BG-17 | 21.2 | 22 | 22-22.3 | 9 |
| BGF1-M24(BG17) | M24*1.5 | 15 | BG-17 | 21.2 | 24 | 24-24.3 | 10 |
| BGF1-M25(BG17) | M25*1.5 | 15 | BG-17 | 21.2 | 25 | 25-25.4 | 10 |
| BGF1-M25(BG23) | M25*1.5 | 21 | BG-23 | 28.5 | 25 | 25-25.4 | 10 |
| BGF1-M27(BG23) | M27*1.5 | 21 | BG-23 | 28.5 | 27 | 27-27.4 | 11 |
| BGF1-M30(BG23) | M30*1.5 | 21 | BG-23 | 28.5 | 30 | 30-30.4 | 11 |
| BGF1-M32(BG23) | M32*1.5 | 21 | BG-23 | 28.5 | 32 | 32-32.4 | 11 |
| BGF1-M32(BG29) | M32*1.5 | 25 | BG-29 | 34.5 | 32 | 32-32.4 | 11 |
| BGF1-M33(BG29) | M33*1.5 | 25 | BG-29 | 34.5 | 33 | 33-33.4 | 11 |
| BGF1-M36(BG29) | M36*1.5 | 25 | BG-29 | 34.5 | 36 | 36-36.4 | 11 |
| BGF1-M40(BG29) | M40*1.5 | 25 | BG-29 | 34.5 | 40 | 40-40.4 | 12 |
| BGF1-M40(BG36) | M40*1.5 | 33 | BG-36 | 42.5 | 40 | 40-40.4 | 12 |
| BGF1-M48(BG36) | M48*2.0 | 33 | BG-36 | 42.5 | 48 | 48-48.4 | 12 |
| BGF1-M50(BG36) | M50*1.5 | 33 | BG-36 | 42.5 | 50 | 50-50.4 | 13 |
| BGF1-M50(BG38) | M50*1.5 | 45 | BG-38 | 54.5 | 50 | 50-50.4 | 13 |
| BGF1-M56(BG38) | M56*2.0 | 45 | BG-38 | 42.5 | 56 | 56-56.4 | 13 |
| BGF1-M63(BG38) | M63*1.5 | 45 | BG-38 | 54.5 | 63 | 63-63.4 | 14 |
型号
Item No . | 螺纹规格Thread | 适应电缆
Cable
Range
| 对应日成
软管型号
BG
| 对应日成
软管外径
BG
| 螺纹外径Thread
O.D.
D1 | 机板口径Panle
Mounting
Hole | 螺纹长度Thread
Length
L1 |
| 德制螺牙BGF-P |
| BGF1-PG7(BG07) | PG-7 | 3-6 | BG-07 | 10.0 | 12.5 | 12.5-12.8 | 6 |
| BGF1-PG9(BG07) | PG-9 | 4-8 | BG-07 | 10.0 | 15.2 | 15.2-15.8 | 7 |
| BGF1-PG9(BG10) | PG-9 | 4-8 | BG-10 | 13.0 | 15.2 | 15.2-15.8 | 7 |
| BGF1-PG11(BG10) | PG-11 | 6-10 | BG-10 | 13.0 | 18.6 | 18.6-18.9 | 8 |
| BGF1-PG11(BG12) | PG-11 | 6-10 | BG-12 | 15.8 | 18.6 | 18.6-18.9 | 8 |
| BGF1-PG13.5(BG12) | PG-13.5 | 8-12 | BG-12 | 15.8 | 20.4 | 20.4-20.7 | 8 |
| BGF1-PG13.5(BG15) | PG-13.5 | 8-12 | BG-15 | 18.5 | 20.4 | 20.4-20.7 | 8 |
| BGF1-PG13.5(BG17) | PG-13.5 | 8-12 | BG-17 | 21.2 | 20.4 | 20.4-20.7 | 8 |
| BGF1-PG16(BG17) | PG-16 | 10-14 | BG-17 | 21.2 | 22.5 | 22.5-22.8 | 9 |
| BGF1-PG21(BG23) | PG-21 | 13-18 | BG-23 | 28.5 | 28.3 | 28.3-28.7 | 11 |
| BGF1-PG29(BG29) | PG-29 | 18-25 | BG-29 | 34.5 | 37.0 | 37.0-37.4 | 11 |
| BGF1-PG36(BG36) | PG-36 | 26-32 | BG-36 | 42.5 | 47.0 | 47.0-47.4 | 13 |
| BGF1-PG48(BG48) | PG-48 | 37-44 | BG-48 | 54.5 | 59.3 | 59.3-59.7 | 14 |
| 管螺牙BGF-G |
| BGF1-G1/4(BG07) | G1/4'' | 3-6 | BG-07 | 10.0 | 13.2 | 13.2-13.4 | 6 |
| BGF1-G3/8(BG10) | G3/8'' | 4-8 | BG-10 | 13.0 | 16.5 | 16.5-17.1 | 7 |
| BGF1-G1/2(BG12) | G1/2'' | 8-12 | BG-12 | 15.8 | 21.3 | 21.0-21.3 | 8 |
| BGF1-G1/2(BG15) | G1/2'' | 8-12 | BG-15 | 18.5 | 21.3 | 21.0-21.3 | 8 |
| BGF1-G1/2(BG17) | G1/2'' | 8-12 | BG-17 | 21.2 | 21.3 | 21.0-21.3 | 8 |
| BGF1-G3/4(BG17) | G3/4'' | 13-18 | BG-17 | 21.2 | 26.6 | 26.5-26.6 | 11 |
| BGF1-G1(BG23) | G1'' | 15-22 | BG-23 | 28.5 | 33.4 | 33.2-33.4 | 11 |
| BGF1-G1-1/4(BG29) | G1 1/4'' | 22-28 | BG-29 | 34.5 | 42.1 | 41.9-42.1 | 12 |
| BGF1-G1-1/2(BG36) | G1 1/2'' | 26-32 | BG-36 | 42.5 | 47.8 | 47.8-48.0 | 13 |
| BGF1-G2(BG48) | G2'' | 37-44 | BG-48 | 54.5 | 59.6 | 59.6-60.1 | 14 |
| 美制螺牙BGF-N |
| BGF1-NPT3/8（BG10） | NPT3/8'' | 4-8 | BG-10 | 10.0 | 16.5 | 16.5-17.1 | 7 |
| BGF1-NPT1/2（BG12） | NPT1/2'' | 8-12 | BG-12 | 15.8 | 21.3 | 21.0-21.3 | 8 |
| BGF1-NPT1/2（BG15） | NPT1/2'' | 8-12 | BG-15 | 18.5 | 21.3 | 21.0-21.3 | 8 |
| BGF1-NPT1/2（BG17） | NPT1/2'' | 8-12 | BG-17 | 21.2 | 21.3 | 21.0-21.3 | 8 |
| BGF1-NPT3/4（BG17） | NPT3/4'' | 13-18 | BG-17 | 21.2 | 26.6 | 26.5-26.6 | 11 |
| BGF1-NPT3/4（BG23） | NPT3/4'' | 13-18 | BG-23 | 28.5 | 26.6 | 26.5-26.6 | 11 |
| BGF1-NPT1（BG29） | NPT1'' | 15-22 | BG-29 | 34.5 | 33.4 | 33.2-33.4 | 11 |
