材 料：外部金属为不锈钢304 ,密封件材料为改性橡胶
防护等级：在规定的卡口范围之内，防护等级可以达到IP66
温度范围：-40℃到100℃
应用场合：用于爆炸危险的场所，防爆电气设备连接，化工、石油、电力、轻工、机械等各个部门，特别适用于自动化工程线路安装。
防爆等级：Ex d IIC Gb/Ex e IIGB
材 料：外部金属为不锈钢304 ,密封件材料为改性橡胶
防护等级：在规定的卡口范围之内，防护等级可以达到IP66
温度范围：-40℃到100℃
应用场合：用于爆炸危险的场所，防爆电气设备连接，化工、石油、电力、轻工、机械等各个部门，特别适用于自动化工程线路安装。
防爆等级：Ex d IIC Gb/Ex e IIGB
产品规格

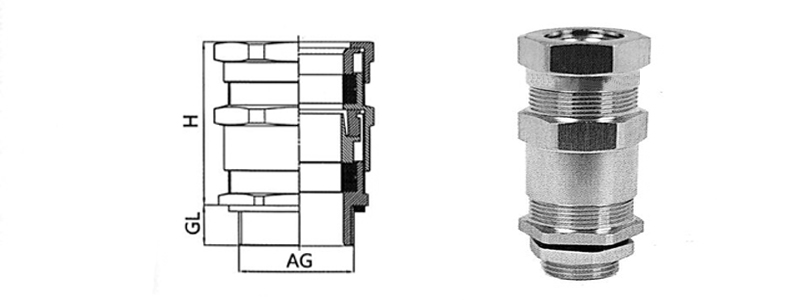

| 型号 Item No. | 螺纹规格 Thread Dimension | 卡口范围 Clamping range mm | 卡口范围 Clamping range mm | 螺纹外径 AG mm | 螺纹长度 GL mm | 高度 H mm | 扳手尺寸 Wrench size mm | 包装单位 Std.Pkg PCS |
| SSM-EX2-M 公制螺纹 Metric Thread | ||||||||
| SSM-EX2-M16x1.5-12 | M16x1.5 | 6-12 | 4-10 | 16 | 15 | 61 | 26 | 10 |
| SSM-EX2-M20x1.5-15 | M20x1.5 | 10-15 | 8-13 | 20 | 15 | 67.5 | 30 | 10 |
| SSM-EX2-M25x1.5-18 | M25x1.5 | 14-18 | 12-16 | 25 | 15 | 67.5 | 34 | 10 |
| SSM-EX2-M30x2.0-23 | M30x2.0 | 17-23 | 15-21 | 30 | 15 | 71 | 45 | 10 |
| SSM-EX2-M32x1.5-27 | M32x1.5 | 22-27 | 20-25 | 32 | 15 | 71 | 50 | 5 |
| SSM-EX2-M36x2.0-27 | M36x2.0 | 22-27 | 20-25 | 36 | 15 | 71 | 50 | 5 |
| SSM-EX2-M40x1.5-33 | M40x1.5 | 26-33 | 24-31 | 40 | 15 | 71 | 55 | 5 |
| SSM-EX2-M48x2.0-33 | M48x2.0 | 26-33 | 24-31 | 48 | 15 | 72 | 55 | 5 |
| SSM-EX2-M50x1.5-41 | M50x1.5 | 32-41 | 27-35 | 50 | 15 | 80 | 65 | 2 |
| SSM-EX2-M56x2.0-49 | M56x2.0 | 40-49 | 35-43 | 56 | 20 | 80 | 75 | 1 |
| SSM-EX2-M63x1.5-57 | M63x1.5 | 48-57 | 42-50 | 63 | 20 | 81 | 80 | 1 |
| SSM-EX2-M64x2.0-49 | M64x2.0 | 40-49 | 35-43 | 64 | 20 | 80 | 75 | 1 |
| SSM-EX2-G管螺纹 G Thread | ||||||||
| SSM-EX2-G3/8-12 | G3/8 | 6-12 | 4-10 | 16.662 | 15 | 61 | 26 | 10 |
| SSM-EX2-G1/2-15 | G1/2 | 10-15 | 8-13 | 20.995 | 15 | 67.5 | 30 | 10 |
| SSM-EX2-G3/4-18 | G3/4 | 14-18 | 12-16 | 26.441 | 15 | 67.5 | 34 | 10 |
| SSM-EX2-G1-27 | G1 | 22-27 | 20-25 | 33.249 | 15 | 71 | 50 | 5 |
| SSM-EX2-G1 1/4-33 | G1 1/4 | 26-33 | 24-31 | 41.91 | 15 | 71 | 55 | 2 |
| SSM-EX2-G1 1/2-41 | G11/2 | 32-41 | 27-35 | 47.803 | 15 | 80 | 65 | 1 |
| SSM-EX2-G2-49 | G2 | 40-49 | 35-43 | 59.614 | 20 | 80 | 70 | 1 |
