导线截面：0.5～1.5mm2(美国线规22～16) 最大电流：lmax＝19A

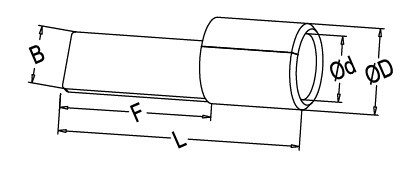

型号 | 尺寸 | ||||
| B | L | F | D | d | |
| mm | mm | mm | mm | mm | |
| DBN1.25-10 | 2.3 | 14.8 | 10.0 | 3.4 | 1.7 |
| DBN1.25-11 | 3.0 | 15.8 | 11.0 | ||
| DBN1.25-14 | 3.0 | 18.8 | 14.0 | ||
| DBN1.25-18 | 2.3 | 22.8 | 18.0 | ||
导线截面：1.5～2.5mm2(美国线规16～14)最大电lmax＝19A
型号 | 尺寸 | ||||
| B | L | F | D | d | |
| mm | mm | mm | mm | mm | |
| DBN2-9 | 2.3 | 13.8 | 9.0 | 4.1 | 2.3 |
| DBN2-18 | 2.3 | 22.8 | 18.0 | ||
导线截面：4～6mm2(美国线规12～10)最大电流：lmax＝48A
| 型号 | 尺寸 | ||||
| B | L | F | D | d | |
| mm | mm | mm | mm | mm | |
| DBN5.5-10 | 2.8 | 14.8 | 13 | 5.6 | 3.4 |
| DBN5.5-14 | 4.5 | 21 | |||
| DBN5.5-18 | 4.5 | 23 | |||
| 型号 | 尺寸 | ||||
| B | L | F | D | d | |
| mm | mm | mm | mm | mm | |
| DBN8-14 | 5 | 22.5 | 14 | 7.2 | 4.5 |
导线截面：10～16mm2(美国线规6)最大电流：lmax＝88A
| 型号 | 尺寸 | ||||
| B | L | F | D | d | |
| mm | mm | mm | mm | mm | |
| DBN14-16 | 6 | 30.6 | 16 | 9 | 6.5 |
