产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套华展端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至85度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜
使用方法:将电线剥开外皮,穿入端子后铜

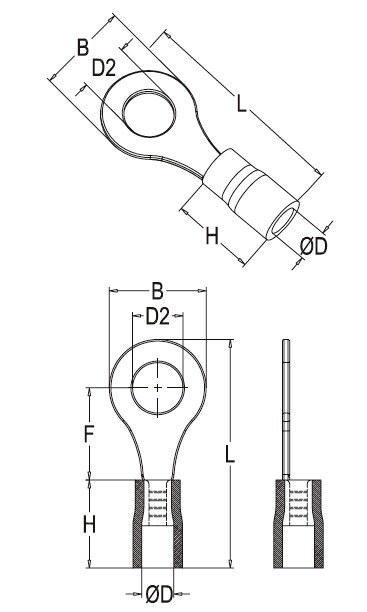

| 型 号 | AWG/mm2 最大电流/包装 | Dia. of bolt | B | L | F | H | φD | 颜色 |
| Item No. | 螺栓口直径 D2 | mm | mm | mm | mm | mm | Color | |
| RF1.25-3 | AWG:22-16 平方:0.5-1.5 电流:19A 包装:1000PCS | 3.2mm | 5.7 | 17.8 | 4.95 | 10 | 4.3 | 红 |
| RFS1.25-3.5 | 3.7mm | 5.7 | 17.8 | 4.95 | ||||
| RFM1.25-3.5 | 3.7mm | 6.6 | 20.1 | 6.3 | ||||
| RFL1.25-3.5 | 3.7mm | 8 | 21.5 | 7 | ||||
| RFS1.25-4 | 4.3mm | 6.6 | 20.1 | 6.3 | ||||
| RFL1.25-4 | 4.3mm | 8 | 21.5 | 7 | ||||
| RF1.25-5 | 5.3mm | 8 | 21.5 | 7 | ||||
| RFL1.25-5 | 5.3mm | 9.8 | 23 | 8.5 | ||||
| RFS1.25-6 | 6.5mm | 9.8 | 23 | 8.5 | ||||
| RF1.25-6 | 6.5mm | 11.6 | 27.5 | 11.1 | ||||
| RF1.25-8 | 8.4mm | 11.6 | 27.5 | 11.1 | ||||
| RF1.25-10 | 10.5mm | 13.6 | 31.6 | 13.9 | ||||
| RF1.25-12 | 13.0mm | 19.2 | 36 | 16.5 | ||||
| RF2-3 | AWG:16-14 平方:1.5-2.5 电流:27A 包装:1000PCS | 3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | 蓝 |
| RFS2-3.5 | 3.7mm | 6.6 | 17.8 | 4.3 | ||||
| RFM2-3.5 | 3.7mm | 6.6 | 21 | 7 | ||||
| RFL2-3.5 | 3.7mm | 8.5 | 22.5 | 7.75 | ||||
| RFS2-4 | 4.3mm | 6.6 | 19.5 | 6.5 | ||||
| RFL2-4 | 4.3mm | 8.5 | 22.5 | 7.75 | ||||
| RFS2-5 | 5.3mm | 8.5 | 22.5 | 7.75 | ||||
| RFL2-5 | 5.3mm | 9.5 | 22.5 | 7.25 | ||||
| RF2-6 | 6.5mm | 12 | 27.6 | 11 | ||||
| RF2-8 | 8.4mm | 12 | 27.6 | 11 | ||||
| RF2-10 | 10.5mm | 14 | 31 | 13.9 | ||||
| RF2-12 | 13.0mm | 19.2 | 36.5 | 16.5 | ||||
| RF3.5-4 | AWG:12-14 平方:2.5-4 电流:37A 包装:500PCS | 4.3mm | 8 | 24.5 | 7.7 | 13.5 | 5.8 | 黑 |
| RFS3.5-5 | 5.3mm | 8 | 24.5 | 7.7 | ||||
| RFL3.5-5 | 5.3mm | 12 | 27.9 | 7.7 | ||||
| RF3.5-6 | 6.5mm | 12 | 27.9 | 7.7 | ||||
| RF3.5-8 | 8.4mm | 15 | 32 | 13.5 | ||||
| RF3.5-10 | 10.5mm | 15 | 32 | 13.5 | ||||
| RF5.5-3.5 | AWG:12-10 平方:4-6 电流:48A 包装:500PCS | 3.7mm | 7.2 | 21.4 | 5.9 | 13.5 | 6.7 | 黄 |
| RFS5.5-4 | 4.3mm | 7.2 | 21.4 | 5.9 | ||||
| RFL5.5-4 | 4.3mm | 9.5 | 26.5 | 8.3 | ||||
| RF5.5-5 | 5.3mm | 9.5 | 26.5 | 8.3 | ||||
| RF5.5-6 | 6.5mm | 12 | 31 | 13 | ||||
| RF5.5-8 | 8.4mm | 15 | 33.7 | 13.7 | ||||
| RF5.5-10 | 10.5mm | 15 | 33.7 | 13.7 | ||||
| RF5.5-12 | 13.0mm | 19.2 | 38.1 | 16 | ||||
| RF8-3 | AWG:8 平方:6-10 电流:62A 包装:100PCS | 3.7mm | 10 | 30 | 17.5 | 4.5 | 红 | |
| RF8-4 | 4.3mm | 10 | 30 | |||||
| RF8-5 | 5.3mm | 10 | 30 | |||||
| RF8-6 | 6.4mm | 11 | 31.5 | |||||
| RF8-8 | 8.4mm | 14 | 36 | |||||
| RF8-10 | 10.5mm | 18 | 39.5 | |||||
| RF14-5 | AWG:6 平方:10-16 电流:88A 包装:100PCS | 5.3mm | 11 | 37.5 | 23 | 5.9 | 红/蓝 | |
| RF14-6 | 6.4mm | 11 | 37.5 | |||||
| RF14-8 | 8.4mm | 14 | 43 | |||||
| RF14-10 | 10.5mm | 18 | 45 | |||||
| RF14-12 | 13.0mm | 18 | 45 |
