产品材质,华展RFN型圆形尼龙绝缘端子 采用优质紫铜制成,导电性良好,外套采用优质PA66制,耐久性不易老化.
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套华展端子钳即可压紧电线,接线美观,
产品颜色:见列表 红 蓝 黑 黄 可定制其它颜色，有起订量要求
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至105度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管,使用端子钳压紧即可.
说明：本系列配套工具 YYT-1,可定制特殊颜色，有起订量要求。
特点:无卤产品，耐热温度达 105 °C。有了易进式绝缘头，加工更简单。压接区域内的硬焊接。内部是槽形轮廓
优势：优质材料可确保电气连接的可靠性。即使在更高的温度下，也可维持导电性。发生火灾时，不会释放毒气。易进式绝缘护套使导线插入更简单。压接区域的槽形轮廓使其具有高抗张强度，可以承受更高的永久性机械应变
导线截面：0.5～1.5mm2(AWG22～16 ) 最大电流：1max＝19A 包装1000pcs
Insulated Size of cable: 0.5-1.5mm2(AWG22-16) Max.Current=19A

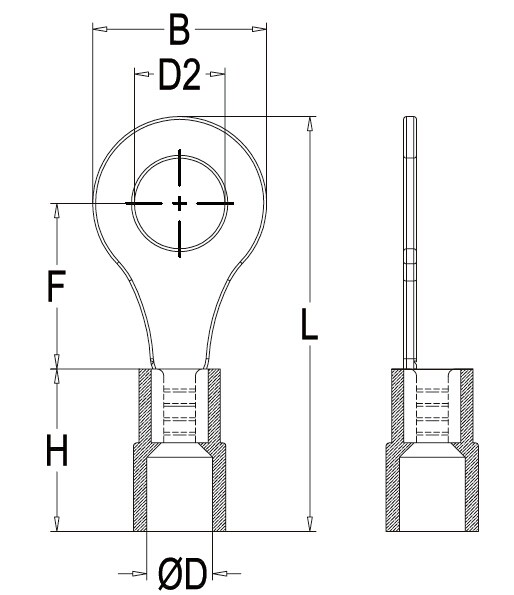

型号 Item No . | 尺寸 DIMENSION | 颜色 color | ||||||
美制螺栓号 | 螺栓口直径 | B | L | F | H | ΦD | ||
| d2 | mm | mm | mm | mm | mm | |||
| RF1.25-3N | #4 | 3.2mm | 5.5 | 18.5 | 5.0 | 11.0 | 4.0 | 红 |
| RFS1.25-3.5N | #6 | 3.7mm | 5.7 | 18.5 | 5.0 | |||
| RFM1.25-3.5N | #6 | 3.7mm | 6.6 | 20.4 | 6.3 | |||
| RFL1.25-3.5N | #6 | 3.7mm | 8.0 | 21.8 | 7.0 | |||
| RFS1.25-4N | #8 | 4.3mm | 6.6 | 20.4 | 6.3 | |||
| RFL1.25-4N | #8 | 4.3mm | 8.0 | 21.8 | 7.0 | |||
| RFS1.25-5N | #10 | 5.3mm | 8.0 | 21.8 | 7.0 | |||
| RFL1.25-5N | #10 | 5.3mm | 11.6 | 27.8 | 11.0 | |||
| RFS1.25-6N | 1/4 | 6.4mm | 11.6 | 27.8 | 11.0 | |||
| RF1.25-6N | 1/4 | 6.4mm | 11.6 | 27.8 | 11.0 | |||
| RF1.25-8N | 5/16 | 8.4mm | 11.6 | 27.8 | 11.0 | |||
| RF1.25-10N | 3/8 | 10.5mm | 13.6 | 31.5 | 13.9 | |||
| RF1.25-12N | 1/2 | 13.0mm | 19.6 | 36.4 | 16.0 | |||
导线截面：1.5～2.5mm2(AWG16～14) 最大电流：lmax＝27A.包装1000pcs
Insulated Size of cable: 1.5-2.5mm2(AWG 16-14) Max.Current=27A
型号 Item No . | 尺寸 DIMENSION | 颜色 color | ||||||
美制螺 栓号 | 螺栓口直径 | B | L | F | H | ΦD | ||
| d2 | mm | mm | mm | mm | mm | |||
| RF2-3N | #4 | 3.2mm | 6.6 | 18.8 | 4.8 | 11.0 | 4.5 | 蓝 |
| RFS2-3.5N | #6 | 3.7mm | 6.6 | 18.8 | 4.8 | |||
| RFM2-3.5N | #6 | 3.7mm | 6.6 | 20.4 | 6.3 | |||
| RFL2-3.5N | #6 | 3.7mm | 8.5 | 22.8 | 7.4 | |||
| RFS2-4N | #8 | 4.3mm | 6.6 | 20.4 | 6.3 | |||
| RFL2-4N | #8 | 4.3mm | 8.5 | 22.8 | 7.8 | |||
| RFS2-5N | #10 | 5.3mm | 8.5 | 22.8 | 7.8 | |||
| RFL2-5N | #10 | 5.3mm | 9.5 | 22.8 | 7.3 | |||
| RF2-6N | 1/4 | 6.5mm | 12.0 | 27.8 | 11.0 | |||
| RF2-8N | 5/16 | 8.4mm | 12.0 | 27.8 | 11.0 | |||
| RF2-10N | 3/8 | 10.5mm | 13.6 | 31.5 | 13.9 | |||
| RF2-12N | 1/2 | 13.0mm | 19.2 | 36.4 | 16.0 | |||
导线截面：2.5～4mm2(AWG14～12)最大电流：lmax＝37A 包装：500PCS
Insulated square：4～6mm2(AWG12-10)Max. cunrrent：lmax=48A
型号 Item No . | 尺寸 DIMENSION | 颜色 color | ||||||
美制螺 栓号 | 螺栓口直径 | B | L | F | H | ΦD | ||
| d2 | mm | mm | mm | mm | mm | |||
| RF3.5-4N | #8 | 4.3mm | 8.0 | 24.5 | 7.7 | 13.5 | 6.4 | 黑 |
| RFS3.5-5N | #10 | 5.3mm | 8.0 | 24.5 | 7.7 | |||
| RFL3.5-5N | #10 | 5.3mm | 12.0 | 27.9 | 7.7 | |||
| RF3.5-6N | 1/4 | 6.5mm | 12.0 | 27.9 | 7.7 | |||
| RF3.5-8N | 5/16 | 8.4mm | 15.0 | 32.0 | 13.5 | |||
| RF3.5-10N | 3/8 | 10.5mm | 15.0 | 32.0 | 13.5 | |||
导线截面：4～6mm2(AWG12～10) 最大电流：lmax=48A.包装500pcs
Insulated Size of cable: 4-6mm2(American standar 12-10) Max.Current=48A
型号 Item No . | 尺寸 DIMENSION | 颜色 color | ||||||
美制螺 栓号 | 螺栓口直径 | B | L | F | H | ΦD | ||
| d2 | mm | mm | mm | mm | mm | |||
| RF5.5-3.5N | #6 | 3.7mm | 7.2 | 22.7 | 6.1 | 13.5 | 6.4 | 黄 |
| RFS5.5-4N | #8 | 4.3mm | 7.2 | 22.7 | 6.1 | |||
| RFL5.5-4N | #8 | 4.3mm | 9.5 | 26.0 | 8.3 | |||
| RF5.5-5N | #10 | 5.3mm | 9.5 | 26.0 | 8.3 | |||
| RF5.5-6N | 1/4 | 6.5mm | 12.0 | 29.5 | 10.5 | |||
| RF5.5-8N | 5/16 | 8.4mm | 15.0 | 34.0 | 13.3 | |||
| RF5.5-10N | 3/8 | 10.5mm | 15.0 | 34.0 | 13.3 | |||
| RF5.5-12N | 1/2 | 13.0mm | 19.2 | 38.6 | 16.0 | |||
