型号Item No. | 规格 Trade Sizes |

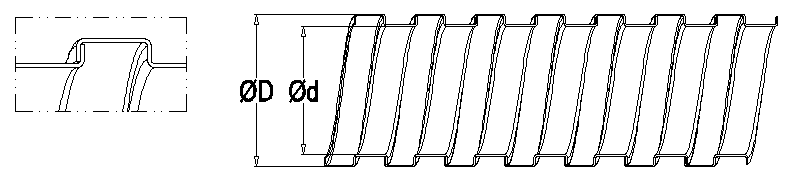

内径 I.D. d |
外径 O.D. D |
弯曲半径 Bending Radius mm±10% |
配套金属头 NBG |
包装Packing M | ||
| - | 公制 | 英制 | ||||||
| MC-01 | - | 6 | 3/16" | 6.0±0.3 | 9.2±0.5 | 40 | NBG-01 | 200M |
| MC-02 | - | 8 | 5/16" | 8.0±0.3 | 12.3±0.5 | 45 | NBG-02 | 200M |
| MC-03 | - | 10 | 1/4" | 10.0±0.3 | 15.0±0.5 | 50 | NBG-03 | 100M |
| MC-04 | - | 13 | 3/8" | 12.5±0.3 | 17.5±0.5 | 60 | NBG-04 | 100M |
| MC-05 | - | 16 | 1/2" | 15.5±0.3 | 21.2±0.5 | 75 | NBG-05 | 100M |
| MC-06 | - | 20 | 3/4" | 20.0±0.3 | 26.0±0.5 | 100 | NBG-06 | 50M |
| MC-08 | - | 25 | 1" | 25.0±0.3 | 31.5±0.5 | 100 | NBG-08 | 50M |
| MC-10 | - | 32 | 1 1/4" | 32.0±0.3 | 38.5±0.5 | 135 | NBG-10 | 25M |
| MC-12 | - | 38 | 1 1/2 | 38.0±0.3 | 45.0±0.5 | 160 | NBG-12 | 25M |
| MC-16 | - | 51 | 2" | 50.0±0.3 | 58.6±0.5 | 190 | NBG-16 | 25M |
| MC-20 | - | 64 | 2 1/2" | 62.5±0.3 | 72.5±0.5 | 250 | NBG-20 | 10M |
| MC-24 | - | 75 | 3" | 73.0±0.3 | 83.5±0.5 | 320 | NBG-24 | 10M |
| MC-32 | - | 100 | 4" | 97.0±0.3 | 108.5±0.5 | 380 | NBG-32 | 10M |
