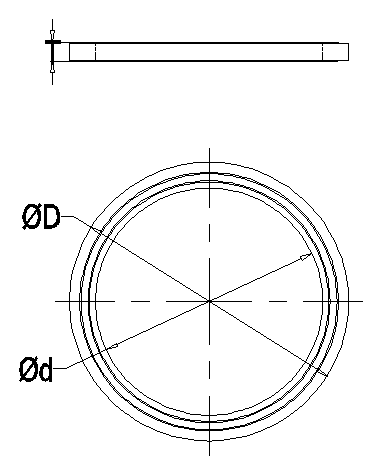

型号Item No. | 内径 I.D. d | 外径 O.D. D | 厚度 Thickness T | 包装 Std.Pkg. pcs | |
| 黑色 Black | 适用接头规格 Thread | ||||
| 公制标准 R-M | |||||
| R-M12B | M12*1.5 | 12.5 | 20 | 1.4 | 100 |
| R-M16B | M16*1.5 | 16.0 | 24 | 1.7 | 100 |
| R-M18B | M18*1.5 | 18.0 | 26 | 1.7 | 100 |
| R-M20B | M20*1.5 | 20.0 | 28 | 1.7 | 100 |
| R-M22B | M22*1.5 | 22.0 | 30 | 1.7 | 100 |
| R-M25B | M25*1.5 | 25.0 | 33 | 1.7 | 100 |
| R-M27B | M27*1.5 | 27.0 | 35 | 1.7 | 100 |
| R-M32B | M32*1.5 | 32.5 | 40 | 1.7 | 100 |
| R-M40B | M40*1.5 | 40.0 | 48 | 1.8 | 50 |
| R-M50B | M50*1.5 | 50.0 | 58 | 1.8 | 50 |
| R-M63B | 63*1.5 | 63.0 | 72 | 1.8 | 50 |
| 德制标准 R-PG | |||||
| R-PG7B | PG7B | 12.5 | 20 | 1.4 | 100 |
| R-PG9B | PG9 | 16.0 | 24 | 1.7 | 100 |
| R-PG11B | PG11 | 18.0 | 26 | 1.7 | 100 |
| R-PG13.5B | PG13.5 | 20.0 | 28 | 1.7 | 100 |
| R-PG16B | PG16 | 22.4 | 30 | 1.7 | 100 |
| R-PG21B | PG21 | 28.0 | 35 | 1.7 | 100 |
| R-PG29B | PG29 | 36.5 | 42 | 1.7 | 100 |
| R-PG36B | PG36 | 48.7 | 54 | 1.8 | 50 |
| R-PG42B | PG4 | 56.0 | 64 | 1.8 | 50 |
| R-PG48B | PG48 | 60.0 | 70 | 1.8 | 50 |
